Event Logging sub-tab
The Event Logging sub-tab provides options to set logging of General Events, Application Events, File Transfer Events, and Xalt | Integration System Events. Event logs may also be viewed from this tab.

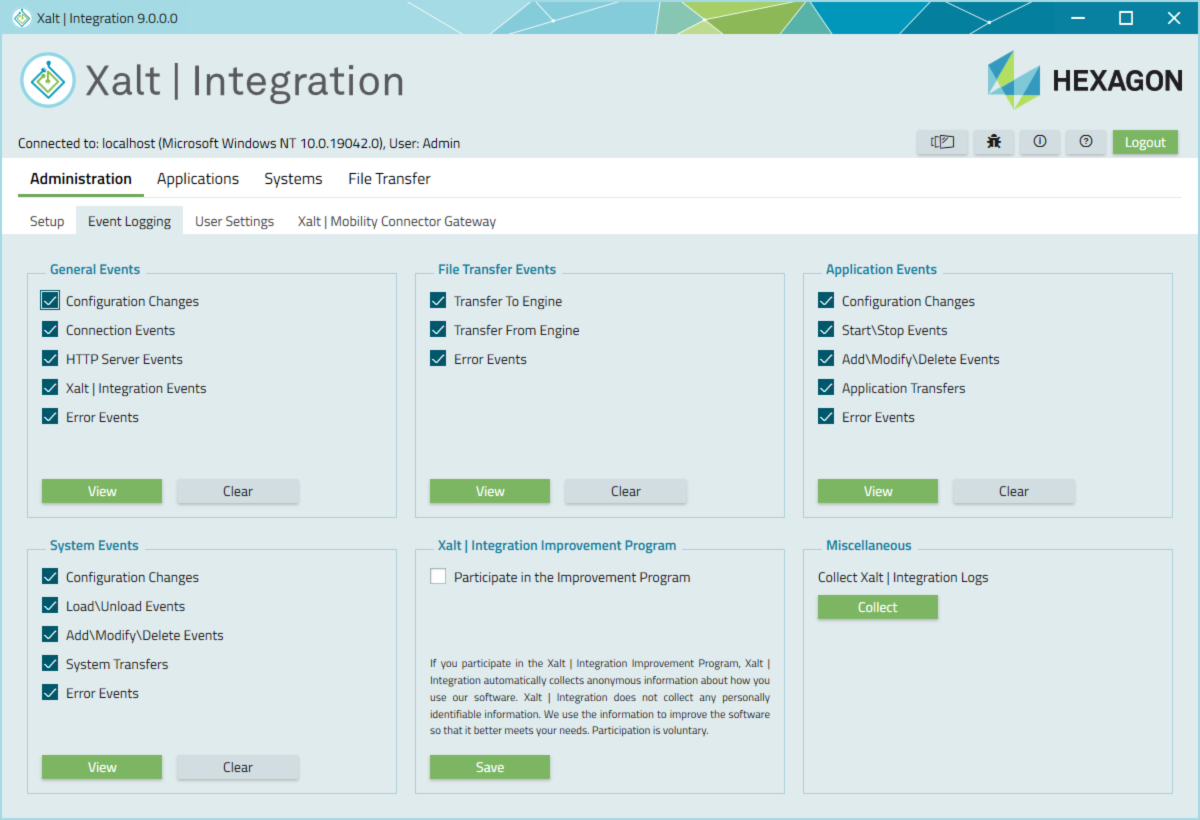

Click here to view the
Event Logging sub-tab.
General Events
The General Events section allows you to specify what information is captured in the General Events log file.
The following table lists the various settings in the General Events section.
|
Setting |
Description |
|
General Events |
Specifies the types of general events to log. Check all events that you want to log. |
|
View |
Displays the corresponding log file. |
|
Clear |
Clears all entries in the corresponding log file. |
Application Events
The Application Events section allows you to specify what information is captured in the Application Events log file.
The following table lists the various settings in the Application Events section.
|
Setting |
Description |
|
Application Events |
Specifies the types of application events to log. select all events that you want to log. |
|
View |
Displays the corresponding log file. |
|
Clear |
Clears all entries in the corresponding log file. |
File Transfer Events
The Transfer Events allows you to specify what information is captured in the File Transfer Events log file.
The following table lists the various settings in the File Transfer Events section.
|
Setting |
Description |
|
File Transfer Events |
Specifies the types of Xalt | Integration file transfer events to log. Select all events that you want to log. |
|
View |
Displays the corresponding log file. |
|
Clear |
Clears all entries in the corresponding log file. |
System Events
The System Events allows you to specify what information is captured in the System Events log file.
The following table lists the various settings in the System Events section.
|
Setting |
Description |
|
System Events |
Specifies the types of Xalt | Integration system events to log. Check all events that you want to log. |
|
View |
Displays the corresponding log file. |
|
Clear |
Clears all entries in the corresponding log file. |
Xalt | Integration Improvement Program
The Xalt | Integration Improvement Program allows you to change the option for participating in the Improvement Program.
The following table lists the various settings in the Xalt | Integration Improvement Program section.
|
Setting |
Description |
|
Participate in the Improvement Program |
Select the checkbox if you are willing to participate in the Improvement Program or leave it unselected if you don't want to participate. |
|
Save |
Saves the setting. |
Miscellaneous
The Miscellaneous section contains additional settings/options related to logging.
The following table lists the various settings in the Miscellaneous section.
|
Setting |
Description |
|
Collect |
Collects the available log files from both Engine and Client and saves them as a ZIP archive. Users can send this ZIP file to the support team for debug purposes. Refer 'Debug Logging' section on how to enable debug logging. |
Debug Logging
Debug Logging allows for a more in depth view of the underlying internal workings of Xalt | Integration. This should only be used for debugging purposes due to the potential of slower processing.

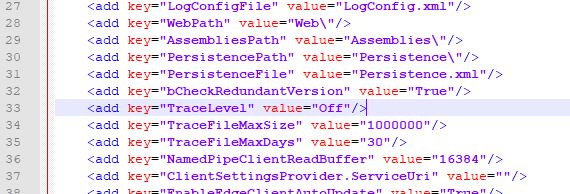

To enable debug logging, open the file located at this path, "C:\Program Files\Hexagon\EdgeFrontier\Engine\EdgeFrontierConsole.exe.config" in a text editor (E.g. Notepad ++). Locate the property named "TraceLevel" and change the value from "Off" to "Debug".
An engine restart is required for this change to be applied.
To disable debug logging, change the value of the "TraceLevel" property to "Off".
